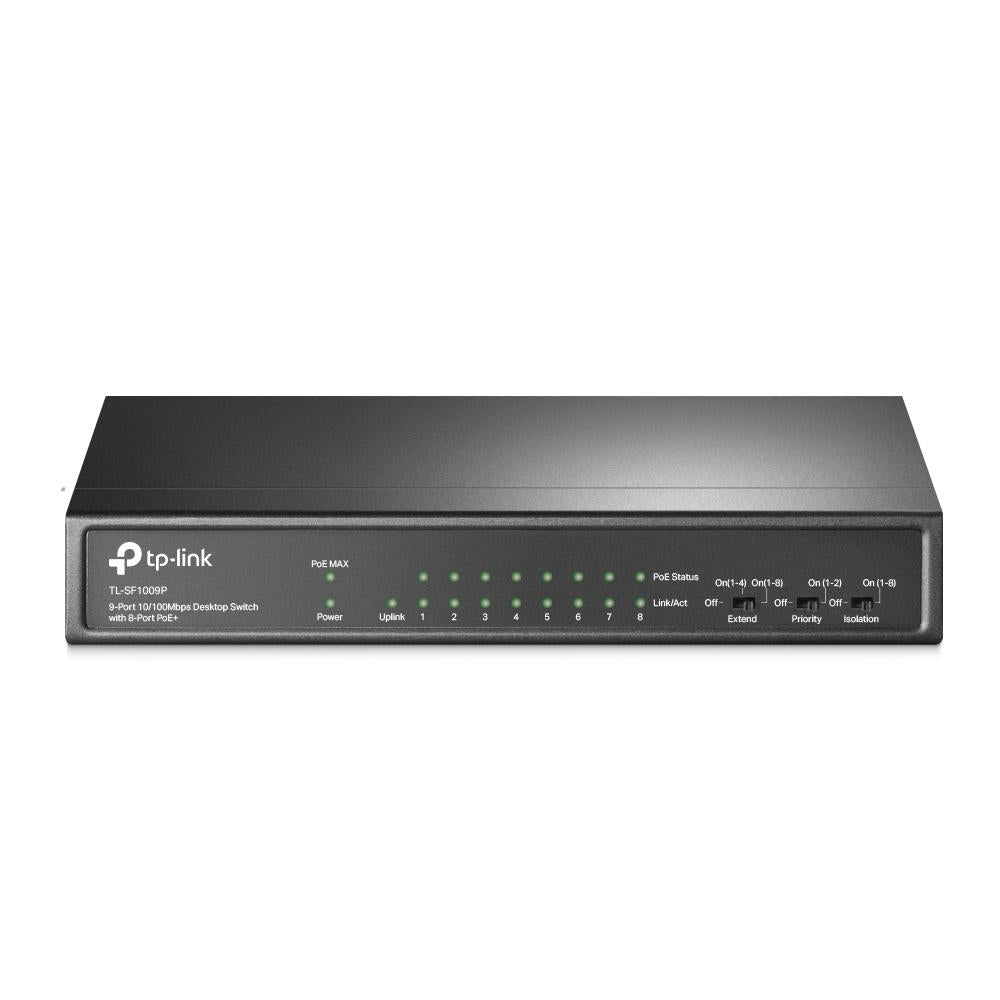

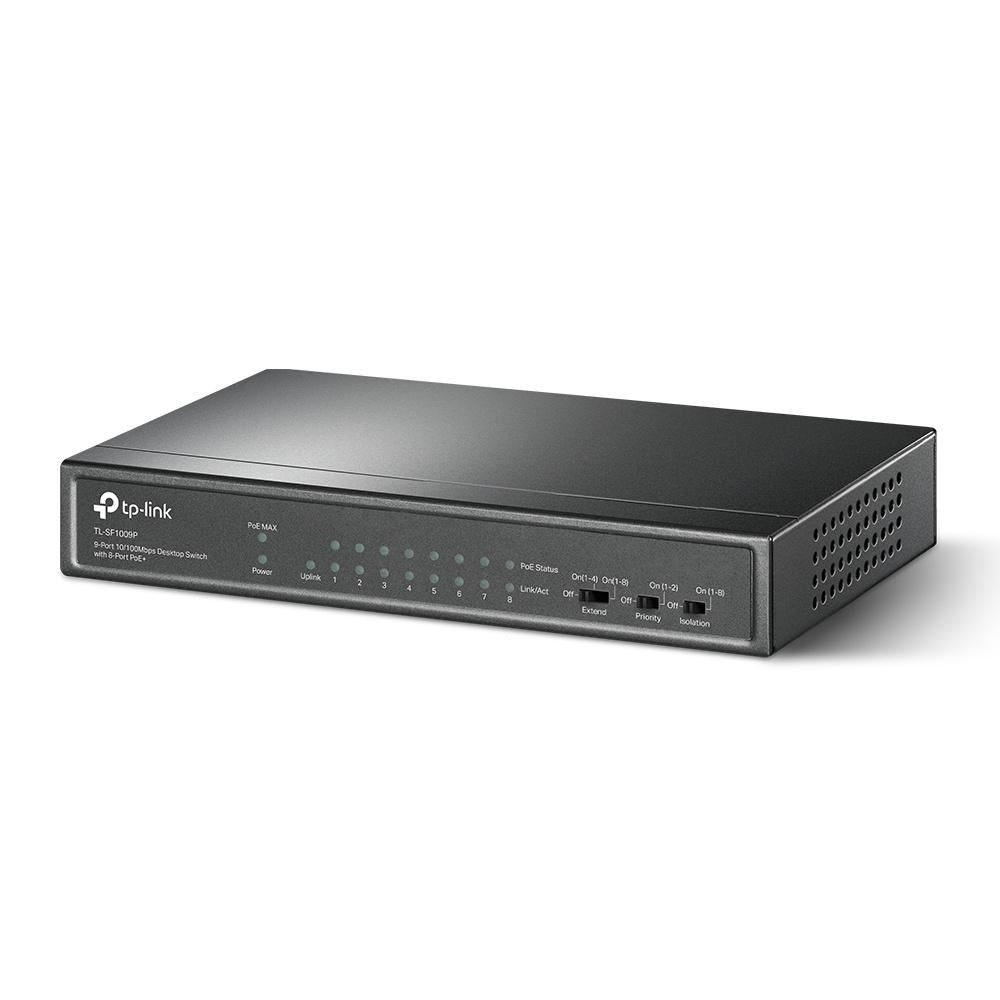

TP-LINK 9-Port With 8-Port PoE+ 10/100Mbps Desktop Switch TL-SF1009P

HIGHLIGHTS

• 9× 10/100 Mbps RJ45 ports
• 8× PoE+ ports transfer data and power on individual cables
• Supports PoE Power up to 30 W for each PoE port

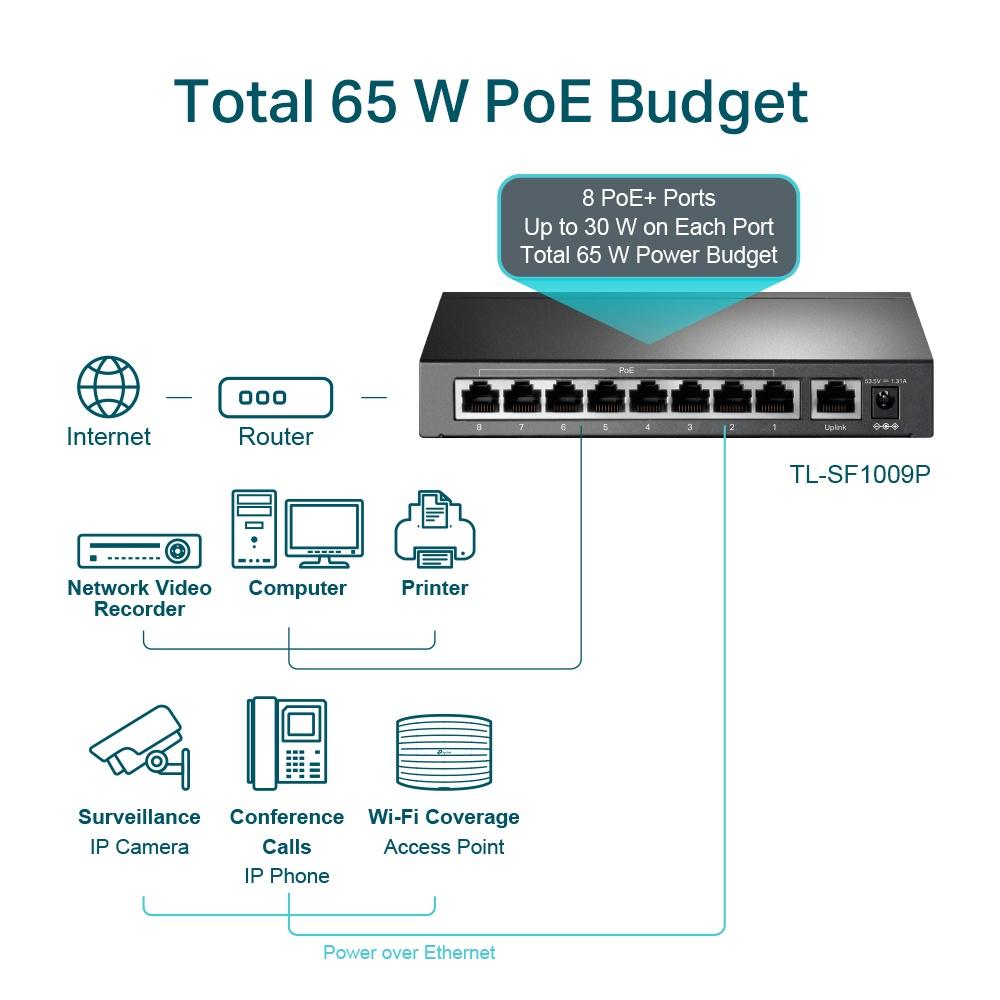

• Supports PoE Power up to 65 W for all PoE ports*

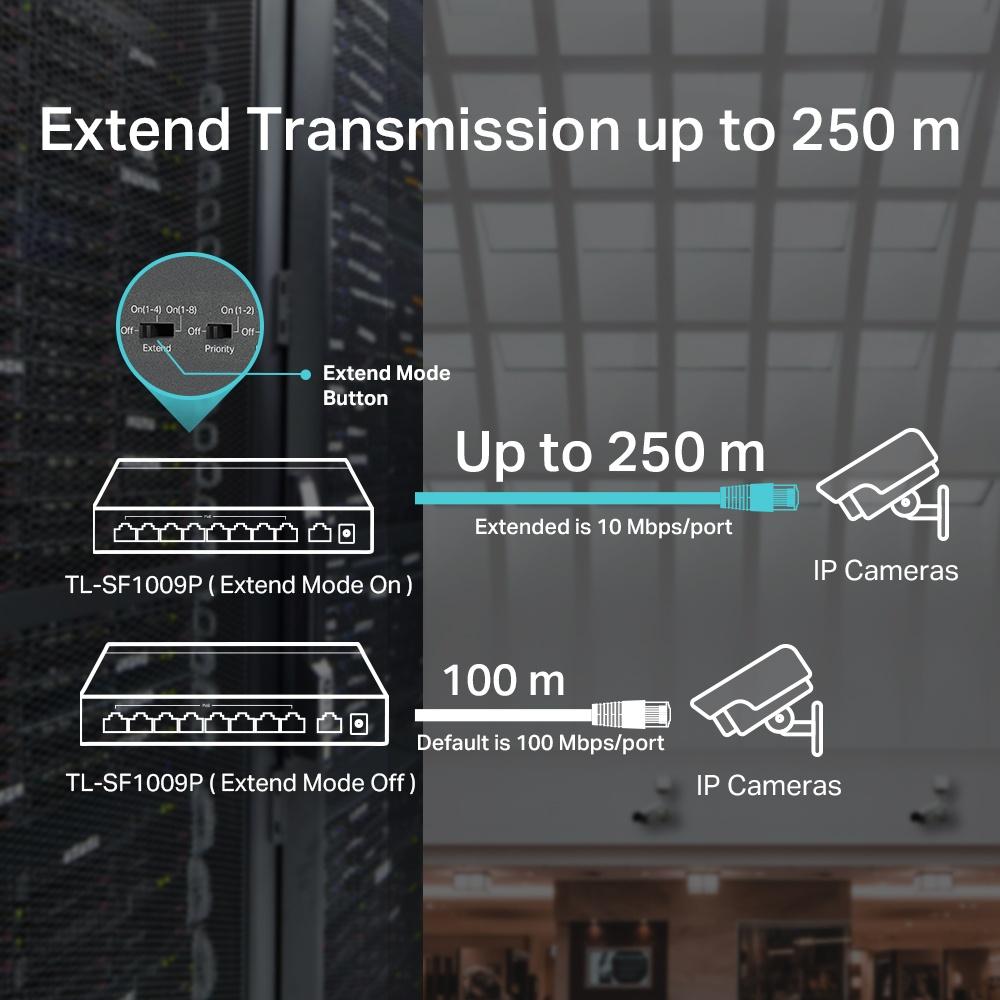

• Up to 250m data and power transmitting range under Extend Mode**

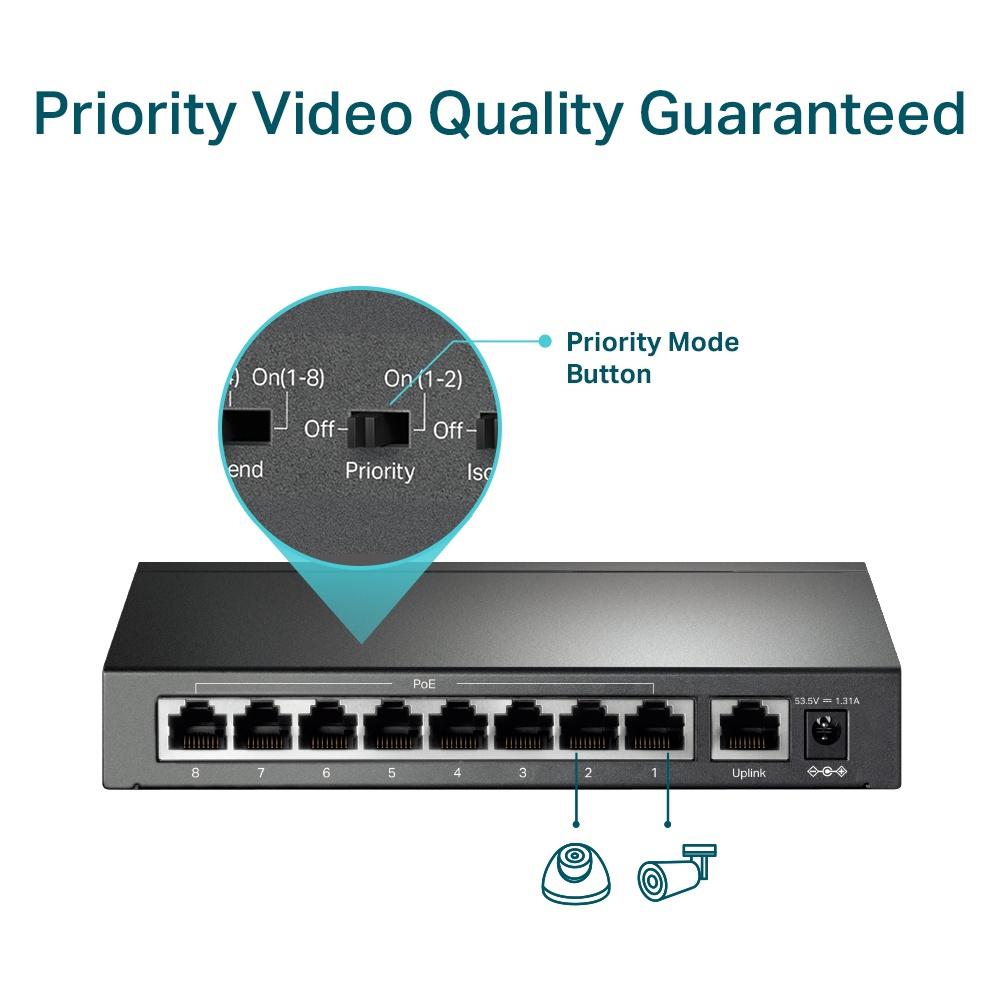

• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

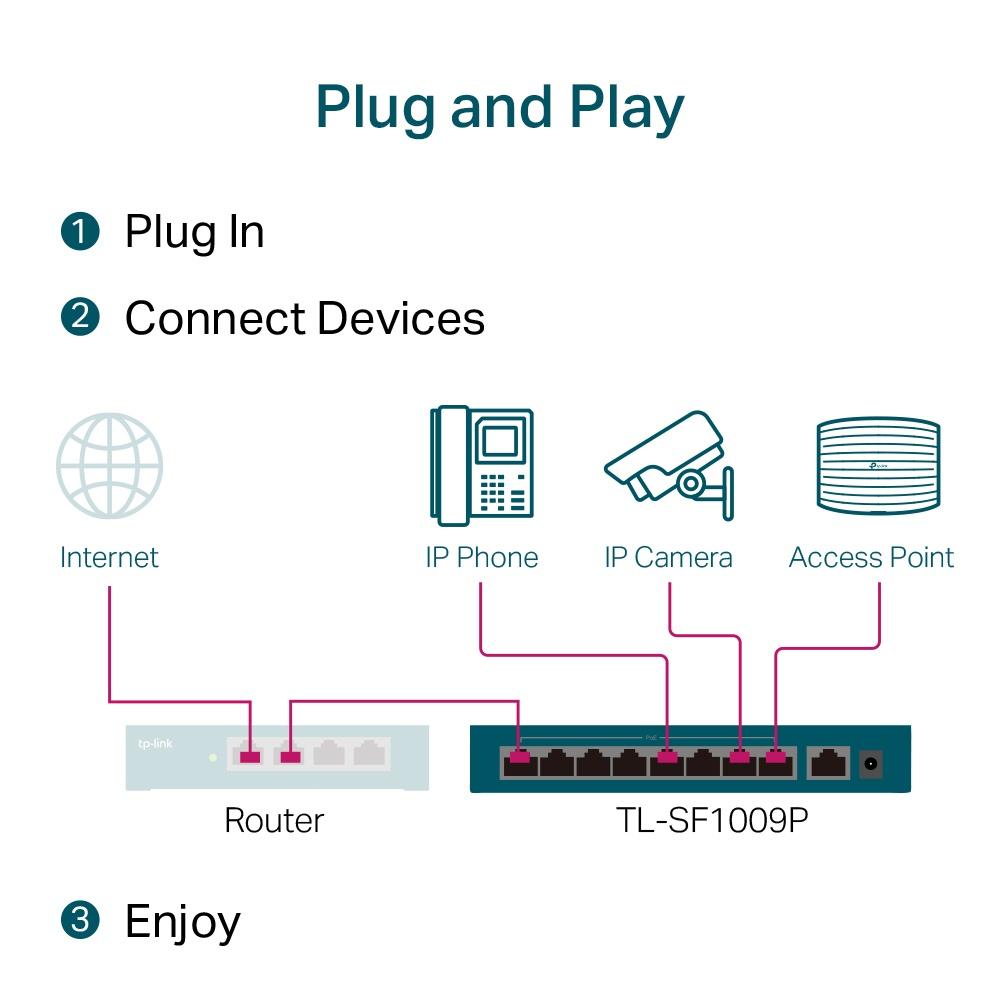

• Plug and play with no configuration required ️

SPECIFICATIONS️

• Interface: 9× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)/ AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter(Output: 53.5 V DC / 1.31 A)
• Physical Security Lock: Yes
• PoE Ports (RJ45): • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W Max
• Power Consumption: • 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected)
• Max Heat Dissipation • 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected)
• Transfer Method: Store and Forward
• Switching Capacity: 1.8 Gbps
• Advanced Functions: • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
• Dimensions (W x D x H): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
• Certifications: CE

WHAT'S IN THE BOX

• 1 TL-SF1009P
• 1 Power Adapter
• 1 Installation Guide
